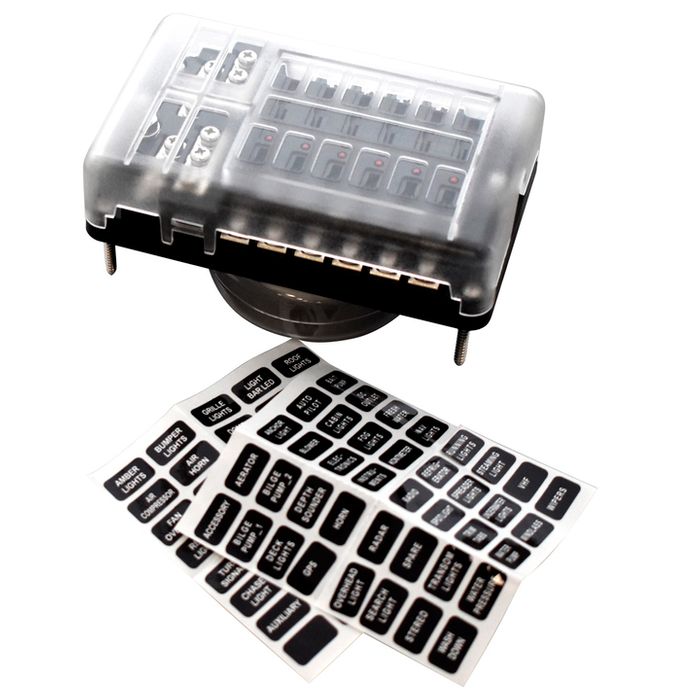

12 Way Std Fuseholder With Neg Pc Termi

Stock Code:
AP52012

Description




Input terminal rating: M5 threaded studs (100A 32V DC.max). Wire size:#4-6 AWG.


• Output terminal rating: M4 threaded studs ( 30A 32V DC.max). Wire size:#12-16 AWG.
• Suitable for Standard ATS size blade fuse and circuit breakers
• When a fuse is broken, the red LED lamp indicates. When the power is connected and the fuse is not plugged in, the LED lamp indicates.
• One input and Twelve output circuit.
• It is widely used in Cars, Bus,Boats, RV car, Yacht, SUV and Off-road vehicle.


12 Way Fuse Holder
Material: PC, PBT, Nickel plated copper
Input termina: l M5 threaded studs
Input rating: 100A 32V DC.max
Output Terminal: Screw terminal
Output rating: 30A max per circuit
Output circuit: 12 Way
