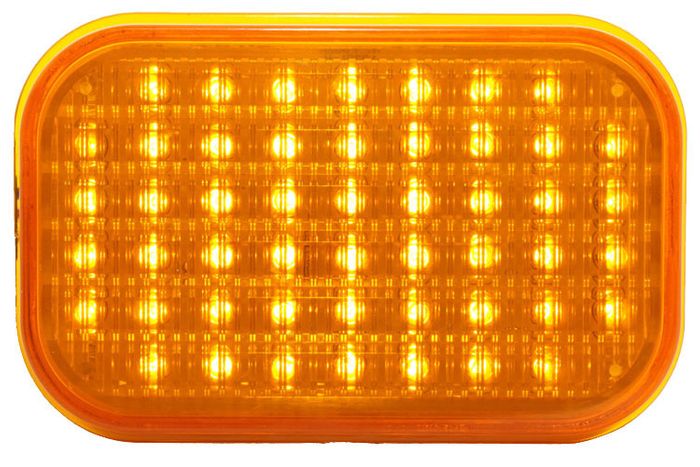

Ap04Ma Led Insert Rectangular Indicator
Stock Code:
AP10510
Description
Equivalent in dimension to the popular sealed lighting systems. These lamps offer a simple retro fit to LED. Polycarbonate construction, multi volt circuitry and 52 LED’s per lamp ensure outstanding performance. Lamps can be flush mounted into rubber grommets or the stainless steel flange.
| Part Number | AP10510 |
| Old Part Number | AP04MA |
| Number of LED’s | 52 |
| Lens Material | Polycarbonate |
| Bracket/Housing | Aluminium |
| Voltage | 10-30V |
| Current Draw | 0.24 Indicator |
| Barcode | 9333938000356 |
Grommet Hole Cut Out Length 139mm, Width 91mm. Light - Length 135mm, Width 86.5mm.
If 3 Pin Plug Is Required Please Also Order AP10509.
If Mounting Grommet Is Required Please Also Order AP10517 or AP10516
