Ap04Mw Led Insert Rectangular Reverse
Stock Code:
AP10512
Description

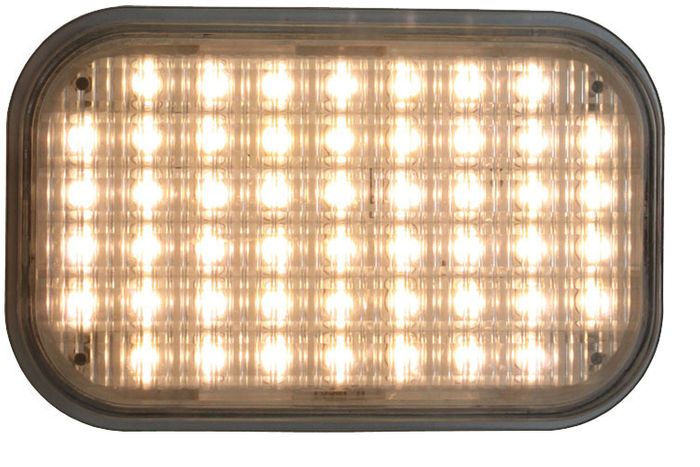

AP10512. White - Reverse Equivalent in dimension to the popular sealed lighting systems. These lamps offer a simple retro-fit to LED. Polycarbonate construction multi-volt circuitry and 50 LEDs per lamp ensure outstanding performance.
Lamps can be flush mounted into rubber grommets (AP10517) or a stainless steel flange (AP10516) to be bought separately.
Number of LEDs : 50
Lens Material : Polycarbonate
Bracket/Housing : ABS Plastic
Voltage : 10-30V
Current Draw : 0.24A Reverse.
Barcode : 9333938000363
Grommet Hole Cut Out : 139mm x 91mm with 19mm corner radius. Light dimensions Length : 135mm, Width : 86.5mm, Height : 46mm.
If LOK 3 Pin Plug Is Required, Please Order AP10509.
