Linear Slide 1000MM X 140Kg

Stock Code:
4015.DTS040.1000

Description

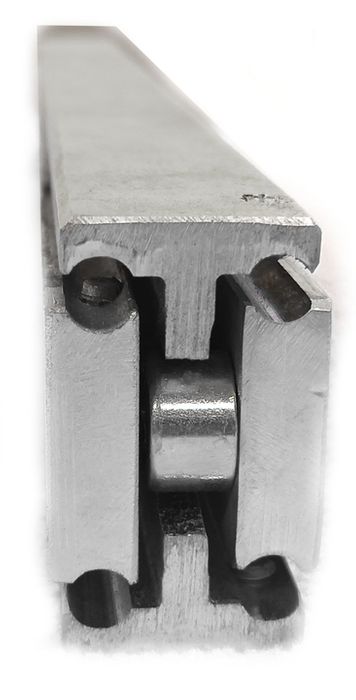

The DTS-40 is a rugged slide which has been designed for load maximisation from a small space envelope. Particularly suited to equipment drawers on special vehicles, it also has a wide range of applications where torsional strength is paramount. This is a heavy load/duty full extension telescopic slide (100Kg – 250Kg/pair) suitable for a wide range of applications. At 550mm 1 pair has a full extension load capacity of 210Kg. Constructed from cold drawn steel sections and fitted with caged ball bearings the DTS 40 telescopic slide has an excellent level of resistance to shock and vibration when supporting a static load in the closed position. Accordingly this slide is well suited to mounting on vehicles. Constructed in the tried and tested I beam format, this telescopic slide offers a low overall slide height for its high load capacity. The DTS 40 drawer slide may also be used in its minor axis but the load capacity will be reduced to 60% of stated load stated for us in major axis. Closed Length (mm) Extension (mm) Max Load Capacity (kg) 1000mm 1000mm 140kg
