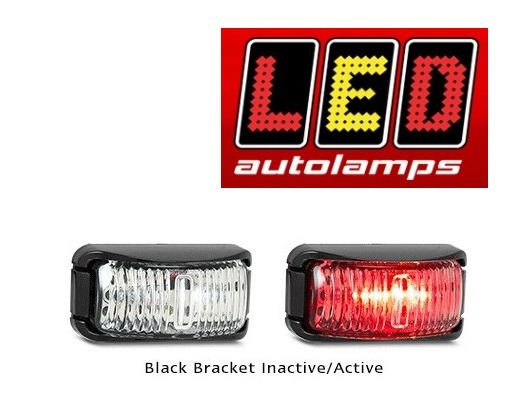

Red Marker Multivolt 74MM X 38MM X 35MM
Stock Code:
42RMB
Description
Rear end outline 74mm x 38mm x 35mm
Voltage:12-24 Volt
Cable: 16cm
Current:@13.8Volts (Red-0.05Amps) (Amber-0.05Amps) (Amber/Red-0.05Amps) (White-0.03Amps)
@28Volts (Red-0.06Amps) (Amber-0.06Amps) (Amber/Red-0.06Amps) (White-0.03Amps)
C.R.N: (Rear Position 42839) (Side Direction Indicator 42836) (Side marker 42837) (Front position 42840)
Fitting: Surface mount bracket onto flat surface horizontally to the ground with screws provided, run wires through back and clip lens into place.
